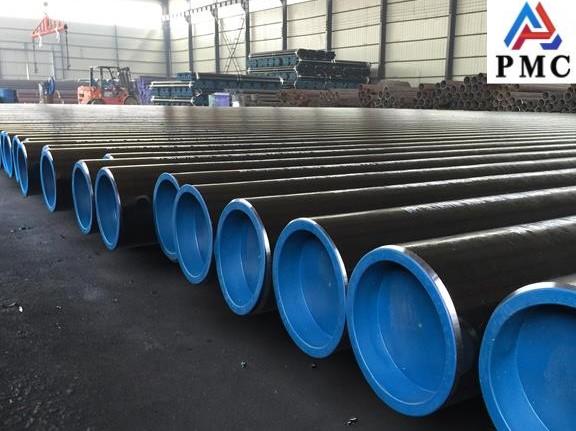

Permanent Steel Manufacturing Co., Ltd offers standard size seamless pipes primarily used in the oil and gas industry, automotive and engineering industries. This is the most common and widely used product and comes in different sizes and thicknesses. The steel pipe sizes are as follows:
Seamless steel pipe sizes in mm:
Thickness: 2.11mm-60mm ( SCH10, SCH20, SCH40, SCH80, STD, SCH120, SCH160, XXS)
Seamless Pipe Specification Chart
| NOMINAL PIPE SIZE | OD(mm) | NOMINAL WALL THICKNESS | |||||||||||||
| DN | NB(inch) | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | |||||
| 40 | 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | |||||||
| 100 | 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||||
| 150 | 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | |
| 450 | 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 550 | 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||
| 600 | 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||
| 700 | 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 750 | 30" | 762 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 800 | 32" | 812.8 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 850 | 34" | 863.6 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 900 | 36" | 914.4 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | 12.7 | |||||||
The factors affecting the size of seamless steel pipes mainly include the following aspects:
1. Rolling process parameters: The roll angle and rolling speed of the piercing machine directly affect the outer diameter accuracy of the steel pipe. The reduction amount and rolling passes during cold rolling determine the wall thickness deviation. Fluctuations in process parameters will lead to dimensional deviations.
2. Raw material quality: The diameter, roundness and material uniformity of the tube blank will be transmitted to the finished product. If the tube blank has ovality, it will easily lead to the outer diameter of the steel pipe being out of round.
3. Temperature control: Excessively high or uneven heating temperature will cause inconsistent deformation of the tube billet, and differences in cooling speed may cause dimensional shrinkage deviation, especially for high-precision cold-drawn tubes.
4. Equipment accuracy: The mechanical clearance and mold wear of equipment such as rolling mills and sizing mills will directly affect the diameter and wall thickness consistency of steel pipes. Old equipment is prone to aggravate dimensional fluctuations.
5. Subsequent processing: Improper operation of straightening, cutting and other processes may lead to straightness deviation or length size error of the steel pipe.
Different industries have different requirements for seamless steel pipe sizes
1. Oil and gas industry: large diameter (219-1422mm), thick wall (6-20mm) steel pipes, meet high pressure and long distance transportation, reduce joints.
2. Chemical industry: mostly medium diameter (25-377mm), wall thickness 5-16mm, stainless steel pipes are often used for corrosive media, and small diameter (10-50mm) can be used in low pressure scenes.
3. Power industry: boiler tube outer diameter 32-426mm, wall thickness 2.5-20mm, high pressure boiler requires thicker wall, in line with GB5310 standard.
4. Mechanical manufacturing: mainly precision tubes, outer diameter 6-200mm, wall thickness 0.5-10mm, dimensional tolerance requirements are strict (within ±0.1mm).
5. Construction industry: small diameter (20-50mm, wall thickness 1-3mm) for decoration, large diameter (159-630mm, wall thickness 5-15mm) for structural support.
Read more: Seamless Steel Pipe Size and Shape Quality Inspection
