What is ASTM A53 Schedule 80 Seamless Steel Pipe?
ASTM A53 Schedule 80 seamless steel pipe is a
carbon steel seamless pipe conforming to the American Society for Testing and Materials (ASTM) standard ASTM A53. Its wall thickness grade is Schedule 80, suitable for applications with high pressure or mechanical loads but not high temperatures and limited budgets.
Material and Grade:
ASTM A53 standard, officially titled "Specification for Welded and Seamless Black and Hot-Dip Galvanized Steel Pipes," is a general-purpose carbon steel pipe standard. ASTM A53 is divided into two grades, Grade A and Grade B. A53 GR.B (yield strength ≥ 240 MPa) is the most commonly used grade, possessing good overall mechanical properties, and its chemical composition control is more lenient than A106.
ASTM A53 Schedule 80 seamless pipe belongs to the ordinary carbon steel series, manufactured using a seamless process, resulting in uniform overall performance and no longitudinal welds. Compared to welded pipes of the same standard, seamless pipes are generally superior in dimensional accuracy, internal and external surface quality, and isotropic mechanical properties.
The mechanical properties of ASTM A53 (e.g., Grade B) are similar to those of Chinese standard 20# steel, but the specific chemical composition ranges differ. When using them as substitutes, a strict comparison of the specific requirements of both standards and design calculations are necessary.
Wall Thickness Grade:
Schedule 80 is abbreviated as SCH 80, indicating the wall thickness grade. SCH 80 is a thicker wall thickness type, suitable for high-pressure applications. The wall thickness range of American standard seamless steel pipes includes SCH20, SCH40, STD, XS, SCH80, SCH160, XXS, etc. The wall thickness value of SCH 80 needs to be determined based on the outer diameter and is usually thicker than SCH 40 pipe (standard wall thickness).
Key Features of ASTM A53 Schedule 80 Seamless Steel Pipe:
1. High Pressure Resistance and High Strength: The thicker wall of SCH 80 provides excellent pressure resistance and mechanical strength, with strong impact and deformation resistance.
2. Economic Efficiency: Although more expensive than SCH 40, its material cost is lower than the higher-end A106 seamless pipe.
3. No Weld Risk: Seamless structure with uniform performance.

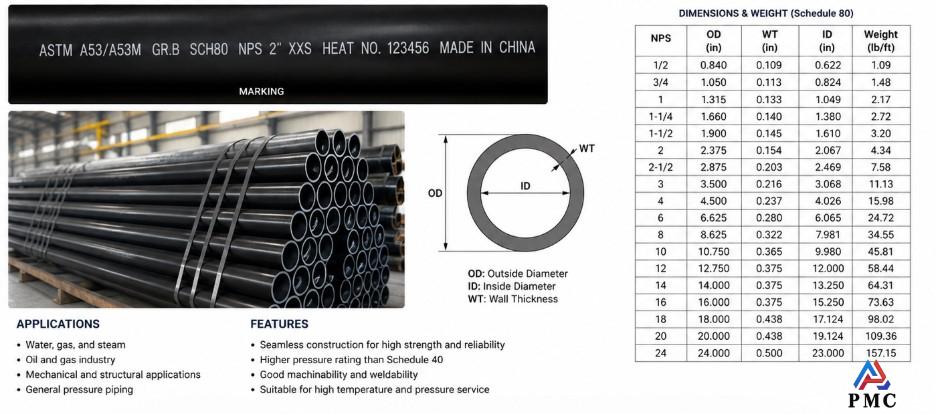

Size Specifications:
ASTM A53 standard seamless pipe dimensions follow ASME B36.10. Common sizes range from NPS 1/8″ to NPS 24″. For the same outer diameter, the inner diameter of SCH 80 pipe is smaller than that of SCH 40 pipe.
Applications of ASTM A53 SCH 80 Seamless Pipe:
1. High-Pressure Fluid Transportation Systems
Industrial Compressed Air Main Pipelines: Main pipelines for centralized air supply systems in factories.
High-pressure hydraulic system piping: Oil lines in engineering machinery and hydraulic equipment, often operating at pressures exceeding 30 MPa.
High-pressure fire-fighting water systems
2. High-abrasion and high-impact environments
Material conveying pipelines: Pipelines for conveying abrasive materials such as ores and coal powder.
Slurry and mud pipelines.
Pipelines in mines and heavy equipment susceptible to impact.
3. Heavy machinery and structural components
Frames and columns of heavy equipment.
High-load mechanical shafts and rollers.
Special high-strength guardrails or safety structures.
Application limitations:
The ASTM A53 standard is not applicable to continuous high-temperature conditions. Because its chemical composition is not optimized for high temperatures, its strength decays rapidly under long-term high temperatures.
