What is ASTM A106 Schedule 80 Seamless Steel Pipe?
ASTM A106 Schedule 80 seamless steel pipe is a heavy-wall carbon steel pipe manufactured to ASTM A106 standards, engineered for rigorous high-temperature and high-pressure industrial applications.
As a seamless pipe, it is produced without any welded joints, giving it a uniform structure and higher reliability compared to welded pipes. The term “Schedule 80” (SCH 80) refers to a heavier wall thickness, which allows the pipe to handle greater internal pressure and harsher operating conditions.
In short, ASTM A106 SCH 80 seamless pipe is a robust, high-strength piping solution. It is widely applied in demanding industrial scenarios including oil and gas conveyance, power plants, boiler systems, and chemical processing projects, where stable performance and operational safety are indispensable.
The ASTM A106 standard is suitable for high-temperature and high-pressure environments and is mainly divided into three grades: A106A, A106B, and A106C. Among them, A106B is the most commonly used grade, possessing good comprehensive mechanical properties. ASTM A106 Schedule 80 seamless pipe belongs to the ordinary carbon steel series, equivalent to #20 steel in China. It is manufactured through hot rolling or cold drawing processes and has no weld seams. The two differ in precision, surface quality, and mechanical properties.
Schedule 80 is abbreviated as SCH 80, indicating a wall thickness grade. SCH 80 is a thicker wall type, suitable for high-pressure applications. The wall thickness range for ASTM A106 Schedule 80 seamless steel pipes includes SCH20, SCH40, STD, XS, SCH80, SCH160, XXS, etc. The wall thickness value of SCH 80 needs to be determined based on the outer diameter and is usually thicker than SCH 40 pipe (standard wall thickness).
ASTM A106 seamless pipe dimensions follow ASME B36.10M. Common sizes typically range from NPS 1/2″ to 24″, although smaller sizes may also be available. For the same outside diameter, SCH 80 pipes have a smaller inner diameter due to their thicker wall thickness compared to SCH 40.

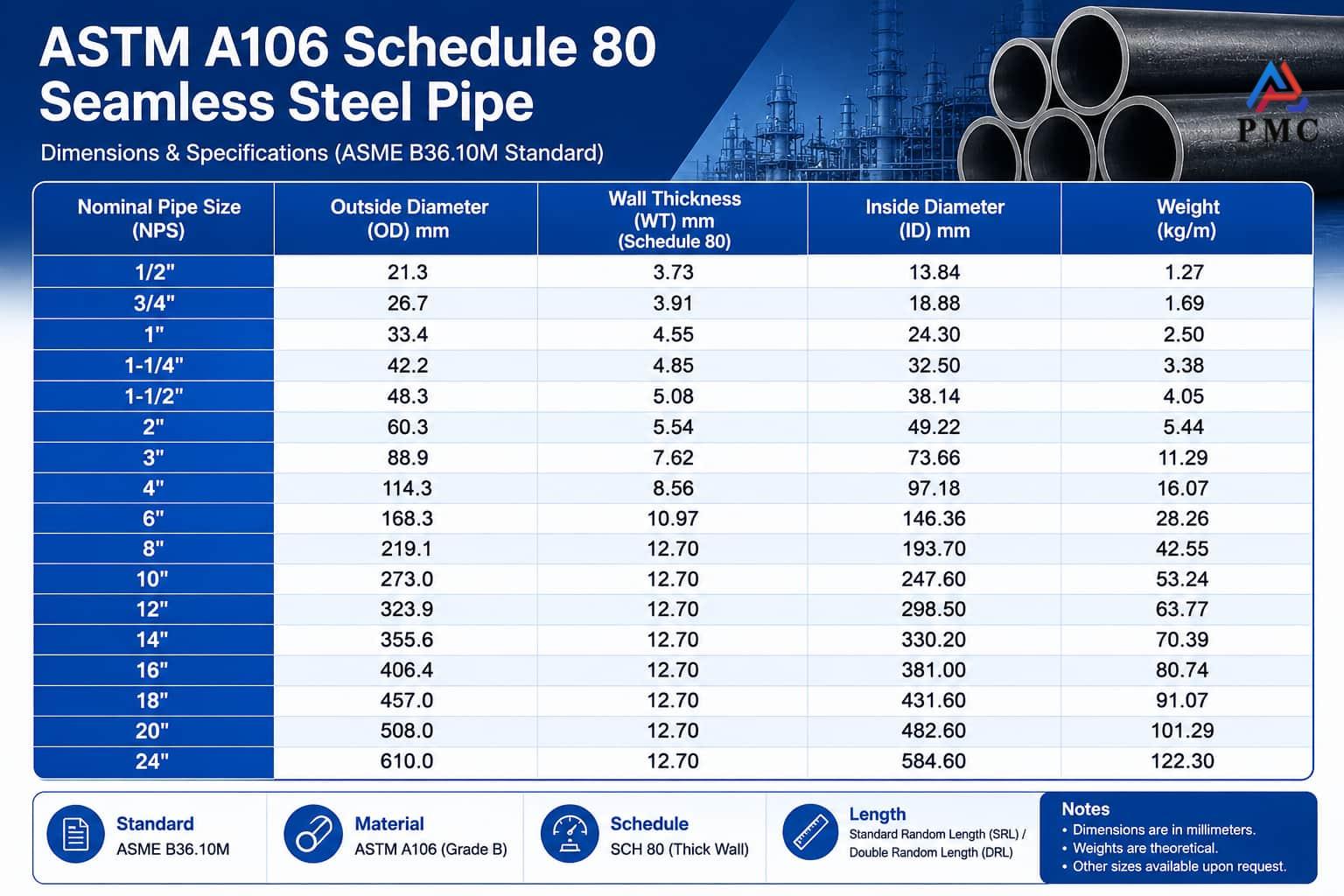

The dimensions and specifications of ASTM A106 Schedule 80 seamless steel pipe are designed to ensure compatibility, strength, and reliable performance in various industrial applications. Key parameters include outside diameter (OD), wall thickness (WT), and length.
The outside diameter (OD) defines the overall pipe size and must meet standardized values to ensure proper connection with fittings and flanges. The wall thickness (WT), classified as Schedule 80, is thicker than lighter schedules, providing enhanced pressure resistance and structural strength. Pipe length is typically supplied in standard random length (SRL) or double random length (DRL), depending on project requirements.
All dimensions comply with ASME B36.10M, ensuring consistency and interchangeability across global piping systems. Strict tolerances are applied to OD, wall thickness, and straightness to maintain safety, pressure capacity, and installation accuracy in demanding environments.
Key equipment interfaces: inlet and outlet pipes for high-temperature and high-pressure vessels and pumps.
Choosing the right ASTM A106 SCH 80 Seamless Pipes ensures safety and cost efficiency. Consider four key factors: pressure, temperature, budget, and safety margin. These pipes are ideal for high-pressure and high-temperature applications, offering superior strength and reliability. Selecting the correct specification helps reduce risks and optimize long-term performance.
ASTM A106 SCH 80 seamless pipes are a reliable solution for high-pressure and high-temperature applications, offering superior strength, durability, and safety due to their thick wall design and seamless structure. With dimensions standardized under ASME B36.10M, these pipes ensure consistency and compatibility across global projects. By carefully considering pressure requirements, temperature conditions, budget, and safety margins, selecting the right ASTM A106 SCH 80 seamless pipes can significantly enhance system performance while minimizing operational risks and long-term costs.
1. What are ASTM A106 SCH 80 Seamless Pipes?
ASTM A106 SCH 80 Seamless Pipes are thick-wall carbon steel pipes designed for high-temperature and high-pressure applications. Manufactured without welded seams, they provide superior strength, durability, and reliability in demanding environments.
2. What does Schedule 80 mean in ASTM A106 pipes?
Schedule 80 refers to the wall thickness of the pipe. Compared to SCH 40, ASTM A106 SCH 80 Seamless Pipes have thicker walls, allowing them to handle higher pressure and offer better structural integrity.
3. What are the standard sizes of ASTM A106 SCH 80 Seamless Pipes?
According to ASME B36.10M, common sizes range from NPS 1/2″ to 24″. Larger sizes may be available depending on project requirements.
4. What industries use ASTM A106 SCH 80 Seamless Pipes?
ASTM A106 SCH 80 Seamless Pipes are widely used in oil and gas, power generation, petrochemical plants, boilers, and other high-temperature service environments where strength and safety are critical.
5. Are ASTM A106 SCH 80 Seamless Pipes suitable for high-temperature applications?
Yes, ASTM A106 SCH 80 Seamless Pipes are specifically designed for high-temperature service. They maintain mechanical strength and performance under elevated temperatures, making them ideal for boilers and heat exchangers.
