Steel casing pipe is one of the most critical materials in oil, gas, geothermal, and water well drilling operations. It provides structural integrity to the borehole, prevents contamination between geological formations, and ensures the long-term safety and productivity of the well. To guarantee quality and performance, every steel casing pipe must comply with internationally recognized casing pipe standards, the most widely used being API 5CT and ISO specifications.
What is a steel casing pipe?

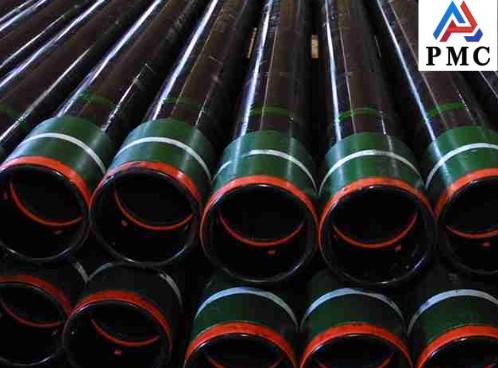

A steel casing pipe is a large-diameter hollow tube inserted into a wellbore and cemented in place to stabilize the borehole. Unlike drill pipes, which are temporary and used only during drilling, casing pipes remain in the well permanently. Their functions include:
1. Preventing borehole collapse.
2. Isolating groundwater from drilling fluids.
3. Withstanding external pressures and internal fluid flows.
4. Providing a conduit for wellhead equipment installation.
Due to these critical roles, steel casing pipes must meet strict standards to ensure safety, durability, and performance.
International steel casing pipe standards
1. API 5CT: All standards, API 5CT is the key benchmark for the oil and gas industry, covering both seamless and welded casing pipes. It defines pipe grades (H40 to P110), length ranges (16–48 ft), and connection types (threaded, coupled, or premium). Pipes must also pass strict mechanical and non-destructive testing. Compliance with API 5CT ensures Among steel casing pipes withstand pressure, corrosion, and extreme drilling conditions.
2. ISO 11960:2020 is the ISO standard for steel casing pipe. Its full name focuses on steel casing/tubing for wells in the petroleum and natural gas industry. It specifies the technical delivery requirements for relevant steel pipes, couplings, and accessories, covering 11 steel grades including H40 and J55.
3. ISO 16440:2016 is the standard for steel casing pipelines in the oil and gas sector. The full name clearly states that it covers the design, manufacture, installation and maintenance of steel casing pipelines, and also specifies relevant requirements and corrosion protection content.
API 5CT casing pipe standard
Among all standards, API 5CT is the benchmark for the oil and gas industry. It specifies technical delivery conditions for seamless and welded casing pipes. Key highlights of the API 5CT casing pipe standard include:
Grades: Ranging from H40, J55, and K55 to higher-strength grades like N80, L80, C90, T95, and P110. Each grade has different mechanical properties suited for specific drilling environments.
Lengths: Classified as Range 1 (16–25 ft), Range 2 (25–34 ft), and Range 3 (34–48 ft).
Connections: Standard threaded and coupled connections, as well as premium connections designed to improve sealing in deepwater or high-pressure wells.
Testing Requirements: Pipes undergo strict non-destructive testing, tensile testing, hydrostatic testing, and impact testing to verify compliance.
Following API 5CT ensures that steel casing pipes can resist crushing forces, corrosive fluids, and extreme temperature variations during drilling and production.
Why standards matter in casing pipe?
Without strict casing pipe standards, the risks in drilling projects would dramatically increase. Poor-quality pipes can lead to:
Borehole collapse.
Fluid migration between geological layers.
Blowouts due to pressure failure.
Costly downtime and well abandonment.
By adhering to API and ISO standards, operators benefit from:
Reliability – Pipes manufactured to standard offer consistent quality.
Safety – Enhanced collapse and burst resistance minimize failure risks.
Efficiency – Standardized dimensions and connections improve installation.
Cost Savings – Longer service life reduces replacement and maintenance costs.
Steel casing pipe applications
Steel casing pipes built to API 5CT and ISO standards are used in a wide range of applications:
Oil and Gas Wells – To protect the wellbore and support production.
Geothermal Energy Wells – To withstand high heat and corrosive fluids.
Water Wells – To prevent contamination between aquifers.
Construction and Piling – As structural pipes for foundation support.
In every case, using pipes that meet international standards ensures durability and performance under demanding conditions.
