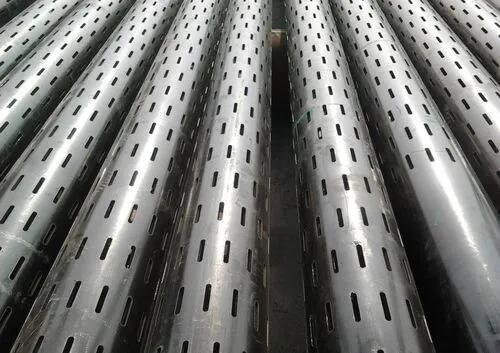

What is a slotted pipe?
Slotted pipe is to cut a number of longitudinal or spiral straight and staggered slots of certain specifications on the
oil casing or oil pipe in various ways. It is made of special ultra-thin cutting sheet and beam cutting, and its slit width is 0.2-0.5mm. The cross-section of the slit is rectangular, trapezoidal (trapezoidal angle is 3-8 degrees) and special shape (round hole), which can ensure the permeability of 0.5%-10%. The layout of the slit can be processed according to the user's requirements.
Features of slotted pipe:
1. The slotted pipe is suitable for sand control in sand wells with a sand particle size greater than 0.3mm.
2. The verticality of the cutting edge is good, the cutting edge is smooth, no burr, and the cutting seam is even.
3. Large flow area, 27/8" screen pipe with 300 slots/1.5m, which is 2.4 times larger than the flow area of tubing with the same specification.
4. Anti-corrosion treatment is carried out on the whole, which improves the corrosion resistance and wear resistance of the screen pipe, and can prolong its downhole working life.
5. The slotted pipe is processed by
J55 or N80 oil casing body, which has high strength and is not easy to deform.
6. Large internal diameter, easy to arrange pipe strings.
Applicable fields and practical applications of slotted pipe:
1. Well construction
Slotted pipe is a commonly used supporting material in water well construction. Slotted pipes have slits that allow water to infiltrate around the perimeter of the pipe while preventing soil particles from entering the interior of the pipe. It is widely used in agricultural irrigation, industrial water supply, municipal engineering and other fields.
2. Groundwater extraction
In groundwater exploitation, slotted pipes are often used to construct water wells. Through rational design and installation of slotted pipes, effective filtration and collection of groundwater can be achieved, resulting in cleaner water quality and more stable water volume.
3. Oil and gas exploration
Slotted pipes are increasingly used in oil and gas exploration. It can be used to collect formation samples, conduct hydrogeological tests, improve the productivity of oil and gas wells, and more. The special structure of the slotted pipe can prevent cuttings and particles from entering the wellbore and maintain the patency of the production well.
4. Geological exploration and groundwater monitoring
Slotted pipe can be used in geological exploration and groundwater monitoring. It can be installed in subsurface penetrations for taking soil, rock and water samples. Through the application of slotted pipe, the monitoring of groundwater level, water quality and hydrodynamic characteristics can be realized.
5. Underground engineering and soil protection
In underground engineering, slotted pipe can be used as an important part of soil protection and drainage system. It can control the groundwater level, prevent problems such as soil liquefaction and landslides, and ensure the stability and safety of the project.
6. Environmental governance and sewage treatment
Slotted pipes are also widely used in environmental governance and sewage treatment. It can be used for the treatment of sedimentary pollutants in lakes, rivers and water bodies, as well as for water filtration and solid-liquid separation in urban sewage treatment plants.
It should be noted that different fields have different requirements and specifications for slotted pipes. When selecting and using slotted pipe, it is necessary to consider factors such as pipe material, slit size, slit shape, corrosion resistance and other factors according to specific application requirements, and follow relevant industry standards and specifications. In addition, during the construction process, attention should also be paid to safe operation to ensure the engineering quality and construction efficiency of slotted pipes.
