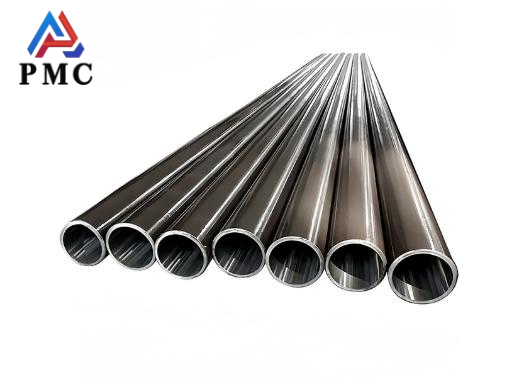

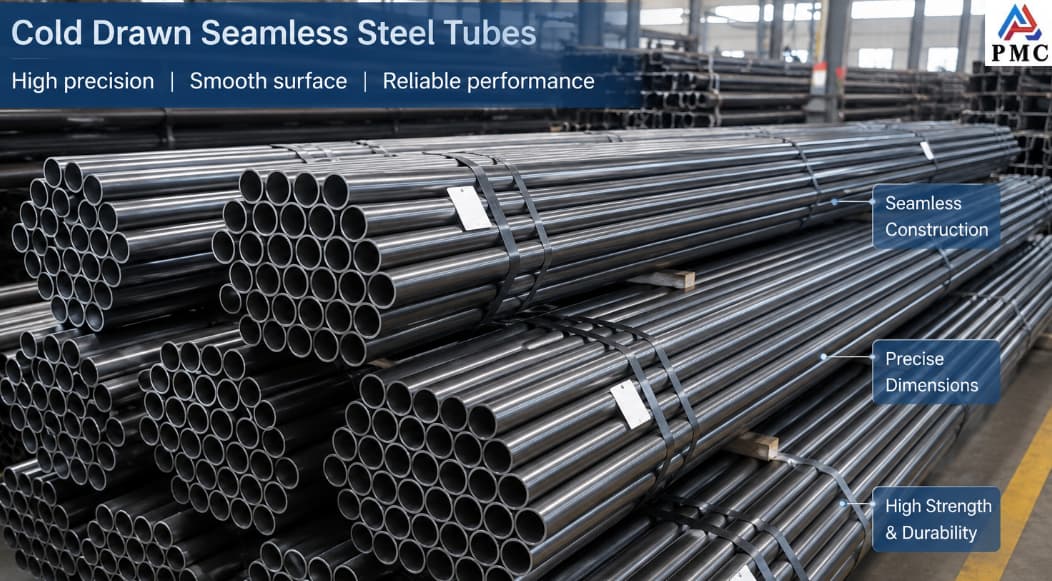

In the industrial field, cold-drawn seamless steel pipes are indispensable "blood vessels". This seamless steel pipe made by cold drawing process plays an important role in many key scenarios due to its high strength, high precision and good corrosion resistance. Because cold-drawn seamless steel pipes are widely used and important, it is extremely important to identify their quality. High-quality steel pipes can ensure the safe and stable operation of projects and equipment, reduce failure and maintenance costs, and extend service life; while poor-quality steel pipes may cause serious accidents such as leakage and rupture, resulting in huge losses. Below, we will introduce some practical methods to identify the quality of cold-drawn seamless steel pipes.
Appearance inspection
Appearance is an important intuitive basis for judging the quality of cold-drawn seamless steel pipes. Through visual inspection, the surface quality of the steel pipe can be roughly judged.
Main checkpoints:
Surface finish: The surface of the cold-drawn steel pipe should be smooth, without obvious scratches, dents, pores and other defects. If the surface is rough, it may be due to improper cold drawing process or pickling.
Oxide scale: Oxide scale is a layer of hard shell that may exist on the surface of cold-drawn steel pipes. If the oxide scale is not removed thoroughly, it will affect the corrosion resistance and appearance of the steel pipe. High-quality cold-drawn steel pipes should have no obvious oxide scale or rust on the surface.
Cracks and holes: Check whether the steel pipe has defects such as cracks, holes, bubbles, etc., especially at the welding joints and pipe ends.
Straightness and bending: Observe whether the steel pipe has defects such as bending and corrugation. Excellent cold-drawn seamless steel pipe should maintain straightness to avoid affecting installation and load-bearing capacity.
Dimensional measurement
The precision of cold-drawn seamless steel pipes is high, and dimensional accuracy is an important criterion for evaluating their quality.
Main checkpoints:
Outer diameter and wall thickness: Use calipers, outside diameter gauges and other tools to measure the outer diameter and wall thickness of the steel pipe to check whether it meets the design requirements. Cold-drawn steel pipes usually have smaller dimensional tolerances, and any deviations should be strictly controlled.
Length tolerance: Check whether the length of the steel pipe meets the standard, especially in applications where long dimensions are required, the length error should not exceed the specified tolerance range.
Mechanical properties test
The mechanical properties of cold-drawn seamless steel pipes are crucial to their load-bearing capacity during use.
Main checkpoints:
Tensile strength and yield strength: The tensile strength and yield strength of the steel pipe are tested through tensile tests to ensure that it can meet the load-bearing requirements in the application. For cold-drawn steel pipes, the tensile strength and yield strength are usually higher, which is suitable for high-pressure or high-strength applications.
Elongation: Elongation testing can determine the plasticity of the steel pipe. High-quality cold-drawn steel pipes should have a higher elongation, indicating that they have better toughness.
Hardness test: The hardness of the steel pipe is tested by a hardness tester. Too high hardness may cause the steel pipe to become more brittle, while too low hardness may cause the pipe to be insufficiently strong. A reasonable hardness range indicates that the steel pipe has a good balance of strength and toughness.
Nondestructive Testing
Nondestructive testing is an effective means to verify the internal quality of cold-drawn steel tubes, especially for detecting defects that cannot be directly observed on the surface.
Commonly used non-destructive testing methods:
Ultrasonic testing (UT): It can detect whether there are cracks, pores, inclusions and other defects inside the steel pipe. Ultrasonic testing is the most commonly used non-destructive testing method and is suitable for detecting internal defects of steel pipes.
X-ray testing (RT): Suitable for detecting larger or deep defects inside the steel pipe, such as the quality of the welded joints. X-ray testing conducts a detailed scan of the internal quality of the cold-drawn steel pipe.
Magnetic particle testing (MT): mainly used to detect cracks on the surface or near the surface of steel pipes, suitable for application scenarios with high surface quality requirements.
Penetrant testing (PT): used to check surface cracks, pores and other defects, especially for steel pipes with high requirements for surface smoothness.
Wall thickness uniformity
The wall thickness of cold-drawn seamless steel pipes should be uniform. Uneven wall thickness may lead to insufficient pipe bearing capacity and may even cause rupture under high pressure.
Inspection method:
Wall thickness detection: By measuring the wall thickness at different positions of the steel pipe, ensure that it is within the allowable tolerance range. If there is obvious uneven wall thickness, it may be caused by improper control of the cold drawing process or equipment problems.
Hardness and machinability
The hardness of cold-drawn seamless steel pipe directly affects its subsequent processing performance. Too high hardness may lead to processing difficulties, while too low hardness may affect the strength of the pipe.
Inspection method:
Hardness test: Commonly used hardness test methods include Brinell hardness, Rockwell hardness and Vickers hardness. By testing the hardness, it can be determined whether the steel pipe is suitable for subsequent machining or welding.
Annealing quality
The annealing treatment of cold-drawn seamless steel pipe directly affects the internal stress, plasticity and mechanical properties of the steel pipe. Improper annealing treatment may result in the failure to release the internal stress, affecting subsequent processing and use.
Inspection content:
Microstructure inspection: The structure of the steel pipe can be observed through a metallographic microscope to check whether it is uniform, whether there is overburning or uneven structure.
Quality certification provided by the supplier
Qualified seamless steel pipe manufacturers usually provide corresponding quality certificates to prove that the cold-drawn seamless steel pipes they produce meet the relevant standards and customer technical requirements. The relevant quality certificates include:
Material certificate: ensure that the chemical composition of the steel pipe meets the standards.
Inspection report: Contains test results of mechanical properties such as tensile strength, yield strength, and elongation.
Nondestructive testing report: Inspection report on surface and internal defects.
Conclusion
To identify the quality of cold drawn seamless steel pipes, a multi-pronged approach is required.
These methods comprehensively consider the quality of steel pipes from different angles, which can help us effectively identify high-quality and low-quality products. When purchasing, we must use these techniques in combination, and never look at a single indicator. More observation, more measurement, and more testing, only in this way can we select cold drawn seamless steel pipes that meet the needs and have reliable quality, and lay a solid safety foundation for engineering projects and equipment operation.
